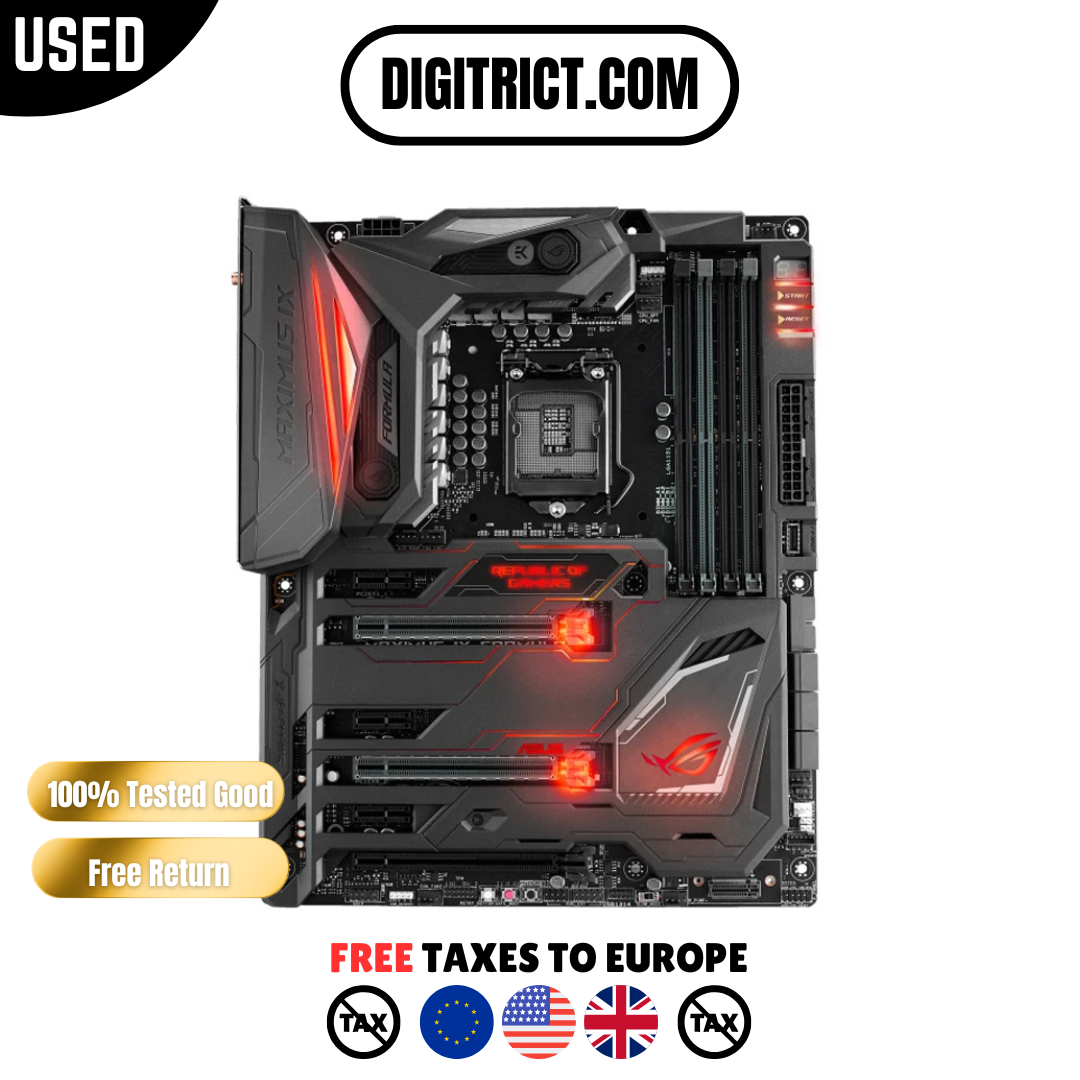

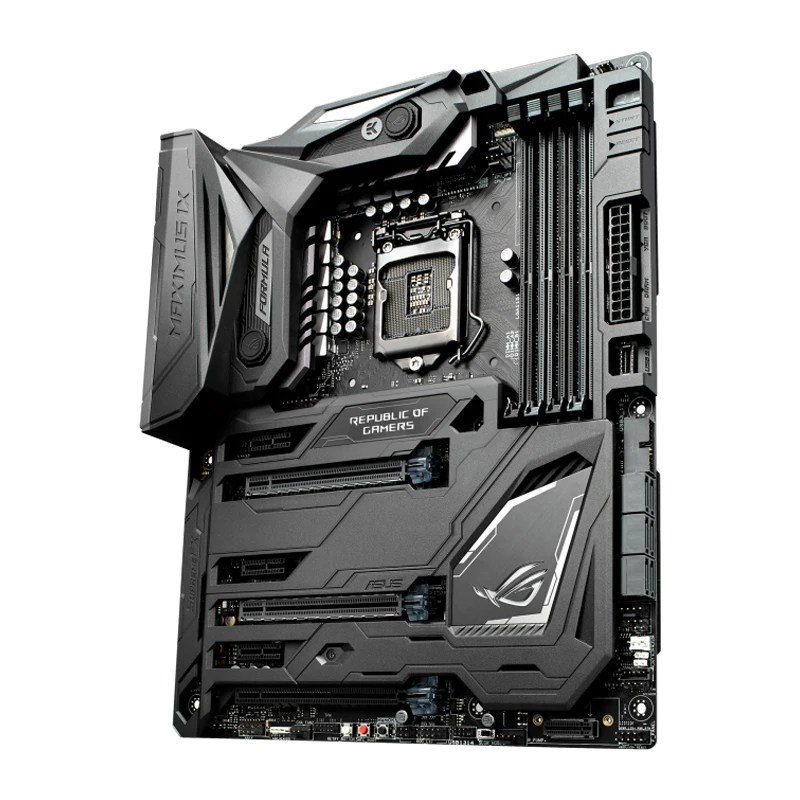

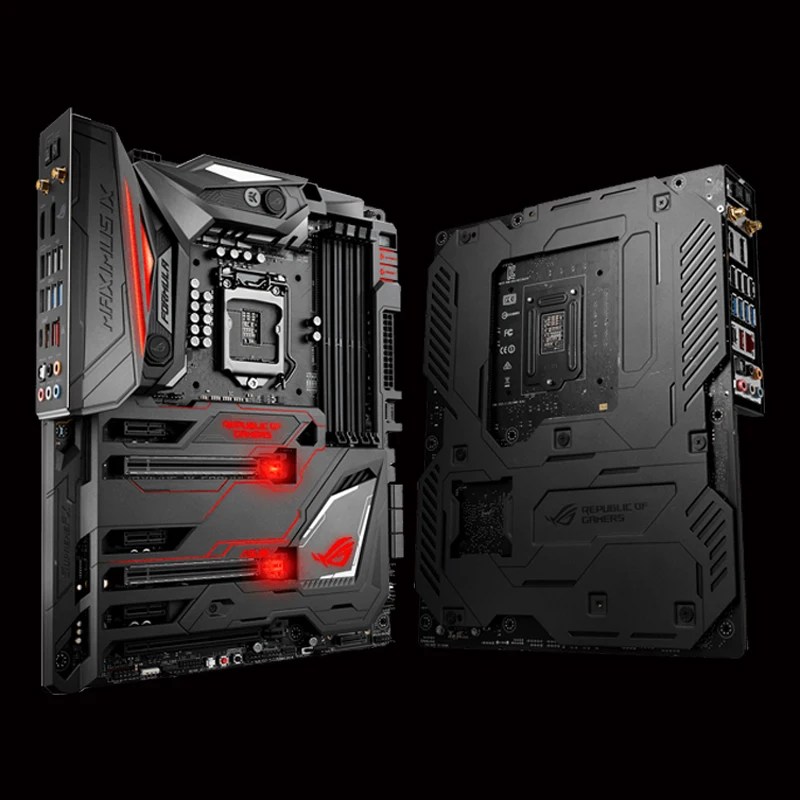

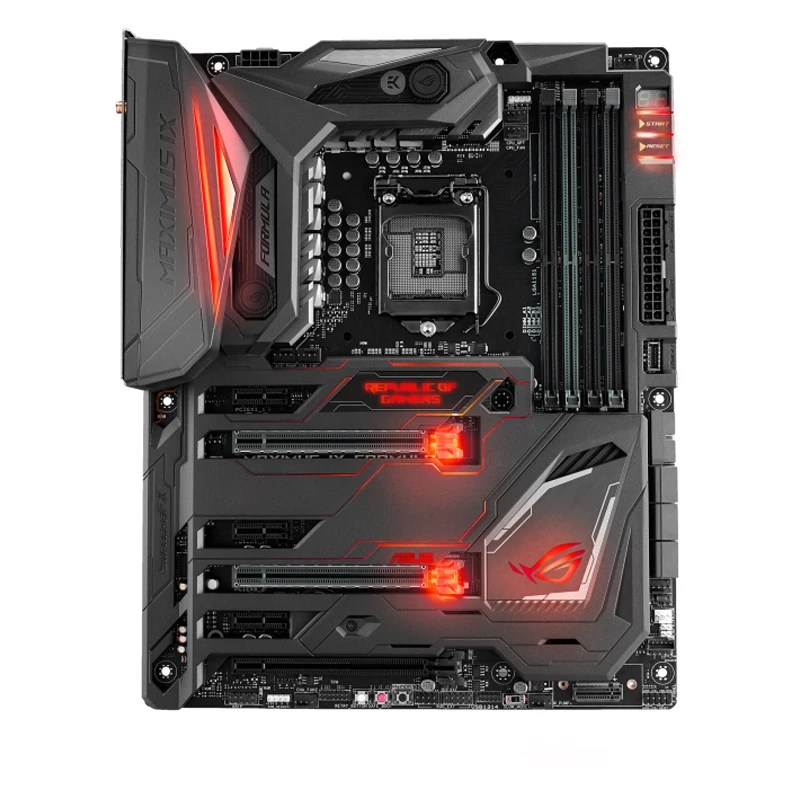

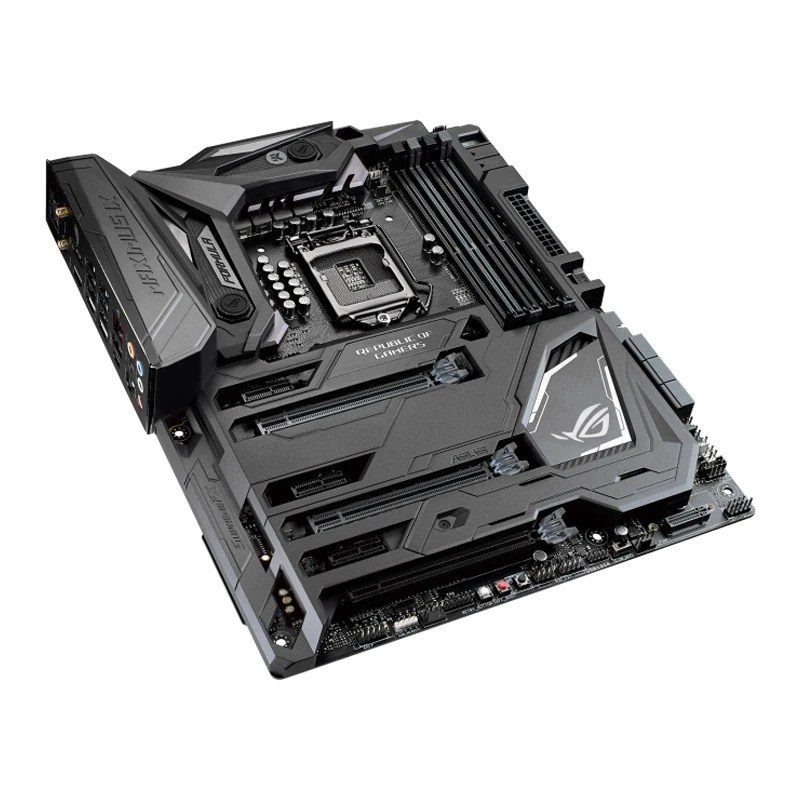

Used ASUS ROG Maximus IX Formula LGA1151 DDR4 DP HDMI M.2 Z270 ATX Motherboard

5 (1)



Model

Brand

ASUS

Series

ROG

Model

MAXIMUS IX FORMULA



Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium

Supported CPU Technologies

Turbo Boost Technology 2.0

* Not Compatible with Intel 8th Gen CPUs



Chipsets

Chipset

Intel Z270



Onboard Video

Onboard Video Chipset

Integrated Graphics Processor

Multi-VGA output support: HDMI/DisplayPort 1.2 ports

– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz

– Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Maximum shared memory of 1024MB



Memory

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel



Expansion Slots

PCI Express 3.0 x16

2 x PCIe 3.0 x16 slots (support x16, x8/x8)

1 x PCIe 3.0 x16 slot (max. at x4 mode)*



*The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 is default set at x2 mode.

PCI Express x1

3 x PCIe 3.0 x1 slots



Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s

M.2

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110(PCIe 3.0 x4 and SATA modes_M.2_1)*

1 x M.2 Socket 3 with M Key, type 2242/2260/2280(supports PCIe 3.0 x4 mode_M.2_2)**



* When the M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.

**When the M.2_2 Socket 3 is operatin in PCIe 3.0 x4 mode, SATA ports 5 and 6 will be disabled.

SATA RAID

0/1/5/10



Onboard Audio

Audio Chipset

ROG SupremeFX S1220

Audio Channels

8 Channels



Onboard LAN

LAN Chipset

Intel I219-V

Max LAN Speed

1Gbps

Wireless LAN

Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz

Up to 867Mbps transfer speed

Bluetooth

Bluetooth v4.1

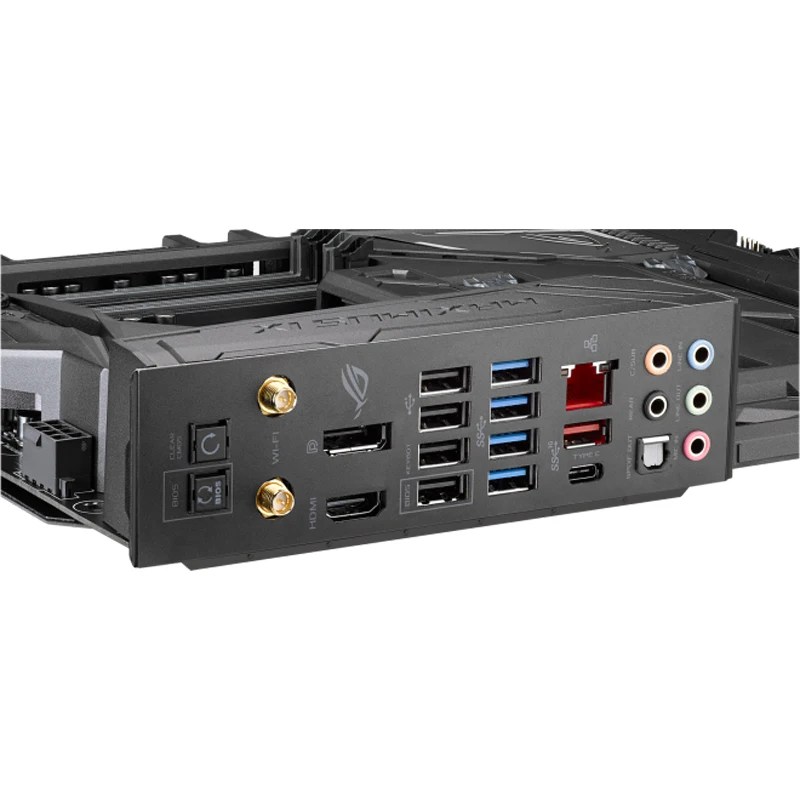

Rear Panel Ports

Back I/O Ports

1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 4 x USB 2.0/1.1 / 4 x USB 3.0

HDMI

1 x HDMI 1.4b

RJ45

1 x Anti-surge LAN (RJ45) port

DisplayPort

1 x DisplayPort 1.2

USB 3.1

2 x USB 3.1 ports (1 x Type-A [red] and 1 x Type-C [black])

USB 3.0

4 x USB 3.0 ports [blue]

USB 1.1/2.0

4 x USB 2.0 ports [black]

S/PDIF Out

1 x Optical

Audio Ports

5 x Gold-plated audio jacks



Internal I/O Connectors

Onboard USB

1 x USB 3.1 front panel connector

1 x USB 3.0 header supports additional 2 USB 3.0 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports [ via ROG_EXT header]

Other Connectors

1 x ROG extension (ROG_EXT) header

1 x 4-Pin CPU fan connector

1 x 4-Pin CPU_OPT fan connector

3 x 4-Pin Chassis fan connectors

1 x EXT_Fan header

1 x 4-Pin W_PUMP+ connector

1 x W_IN header

1 x W_OUT header

1 x W_FLOW header

1 x 4-Pin AIO_PUMP connector

1 x H_AMP fan connector

1 x Thermal sensor connector

1 x 24-pin EATX power connector

1 x 8-pin EATX 12V power connector

1 x Start button

1 x Reset button

1 x Safe Boot button

1 x Retry button

1 x LN2 mode jumper

1 x Slow mode switch

1 x MemOK! Button

1 x Front panel audio connector (AAFP)

1 x TPM connector

1 x System panel connector



Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.0″ x 9.6″

Power Pin

24 Pin



Features

Features

Multi-GPU Support:

Supports NVIDIA 2-Way/Quad-GPU SLI Technology

Supports AMD 3-Way/Quad-GPU CrossFireX Technology



ROG Exclusive Features

Extreme Engine Digi+

– MicroFine Alloy Choke

– NexFET MOSFETs

– 10K Black Metallic Capacitors

Crosschill EK

ROG RGB Armor

Pre-mounted I/O Shield

ROG Aura

– Aura effects (LOGO + ROG Armor RGB lighting)

– 2 x Aura RGB strip headers

Start Button

Reset Button

Safe Boot Button

Retry Button

BIOS Flashback Button

Clear CMOS Button

MemOK! Button

LN2 Mode

ROG RAMDisk

ROG CloneDrive

ROG RAMCache II

KeyBot II

– X.M.P.

– Clr CMOS

– Power On

UEFI BIOS features:

– Extreme Tweaker

– Tweakers’ Paradise

– ROG SSD Secure Erase

– GPU.DIMM Post

– O.C. Profile

– Graphics Card Information Preview



Special Features

ASUS Dual Intelligent Processors 5

– 5-Way Optimization tuning key perfectly consolidates TPU, EPU, and Turbo App

ASUS Exclusive Features

– AI Suite 3

ASUS EZ DIY

– USB BIOS Flashback

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS C.P.R.(CPU Parameter Recall)

– MemOK!

ASUS Q-Design

– Q-Code

– Q-Shield

– Q-Connector

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device LED [yellow green])

– Q-DIMM

– SafeSlot



BIOS

1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.



Manageability

WfM2.0, DMI3.0, WOL by PME, PXE



Software

Drivers

ROG GameFirst IV

ROG RAMDisk

ROG RAMCache II

ROG CPU-Z

ROG Mem TweakIt

Overwolf

ROG Keybot II

CloneDrive

Kaspersky Anti-Virus

DAEMON Tools Pro

ASUS WebStorage

Sonic Studio III

Sonic Radar III

RAMDisk

AURA

WinZip

ASUS Utilities



Operating System Support

Windows 10 64-bit

Windows 8.1 64-bit

Windows 7



Packaging

Package Contents

Accessories:

User guide

Support DVD

3 x 2-in-1 SATA 6Gb/s cables

1 x SLI HB Bridge

1 x Q-Connector

1 x ROG Coaster

1 x 10-in-1 ROG cable label

1 x CPU Installation Tool

1 x M.2 Screw Package

1 x Extension Cable for RGB Strips (80cm)

1 x ROG sticker



Disassemble motherboard rust scratches and dust is inevitable!hight require buyer please don’t pay for it.we can’t promise that each motherboard will include an M.2 heat sink.

We clearly state that qtj1 series processors or other processors modified from notebook CPUs or unofficial version CPUs (ES version) are not supported. Forcible use is equivalent to abandoning the warranty.

After sales agreement:

1. Before shipment, we will take test videos and photos of each order. The products we sell are guaranteed according to our company’s warranty label. Please do not disassemble it. We would not give warranty for dismantled products.

2. When you get the product,If you have any problem about the product, please contact us as soon as possible, do not disassemble the product, or say the product has been repaired, and ask us for a repair fee discount. like this situation we will reject the warranty;

3. Our warranty period for all used motherboards is: tracking information show delivery successfully within 60 days,within 60days we would Take all product quality issues.



Packing include:

1pcs motherboard( NO CMOS battery );

1pcs I/O shield;

60-Day Warranty(from tracking information delivery successful)
