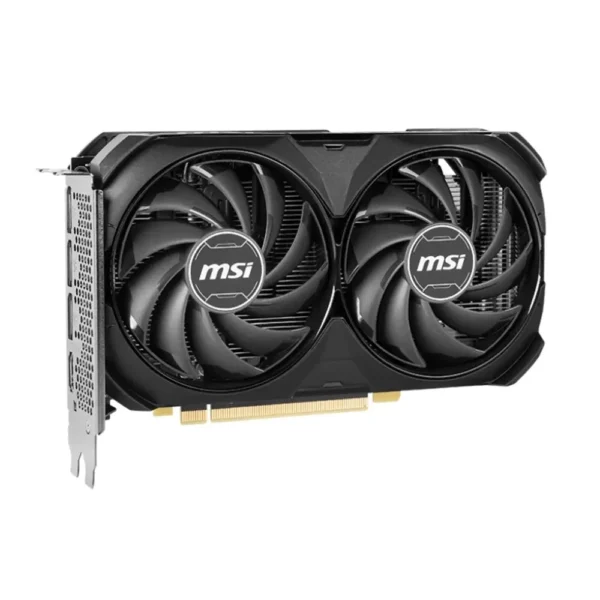

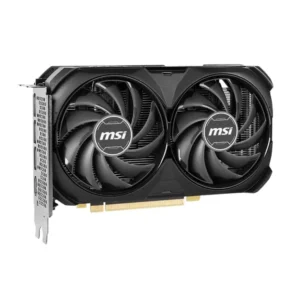

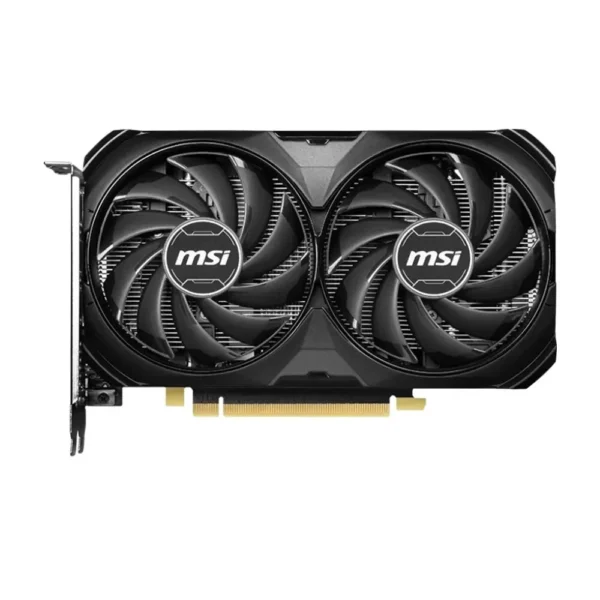

MSI GeForce RTX 4060Ti VENTUS 2X BLACK 8G OC Gaming Graphics Card 8G GDDR6 128-bit PCI-E 4.0 HDMI DP 8Pin Desktop Video Card

4 (1)







• High-Performance GPU :Experience superior gaming performance with the MSI GeForce RTX 4060Ti VENTUS 2X BLACK 8G OC Graphics Card, powered by NVIDIA’s advanced chipset.



• Exceptional Video Memory :Equipped with 8G GDDR6 video memory, this graphics card ensures smooth and fast gaming experience by providing ample storage for game textures and frames.



• Advanced Cooling System :The double fan cooler design ensures optimal performance by keeping the graphics card cool even during intense gaming sessions.



• High Resolution Support :With a max resolution of 7680 x 4320, this graphics card allows for immersive 4K gaming or video production.



• Multiple Output Interfaces :Featuring HDMI 2.1 x1 and PCI Express 4.0 x16 interfaces, this card supports a wide range of monitors and displays.



• Energy-Efficient :Powered by an 8pin connector, this graphics card ensures efficient power delivery for optimal performance.



SPECIFICATIONS



GeForce RTX™4060 Ti VENTUS 2X BLACK 8G OC

Graphics Processing Unit: NVIDIA®GeForce RTX™4060 Ti

Interface : PCI Express® Gen 4 x16 (uses x8)

Core Clocks : Extreme Performance : 2580 MHz (MSICenter) , Boost: 2565 MHz

CUDA®CORES : 4352 Units

Memory Speed : 18 Gbps

Memory : 8GB GDDR6

Memory Bus : 128-bit

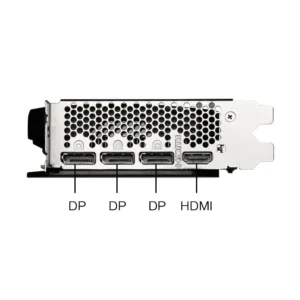

Output : DisplayPort x 3 (v1.4a) , HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)

HDCP Support : YES

Power consumption : 160 W

Power connectors : 8-pin X 1

Recommended PSU : 550 W

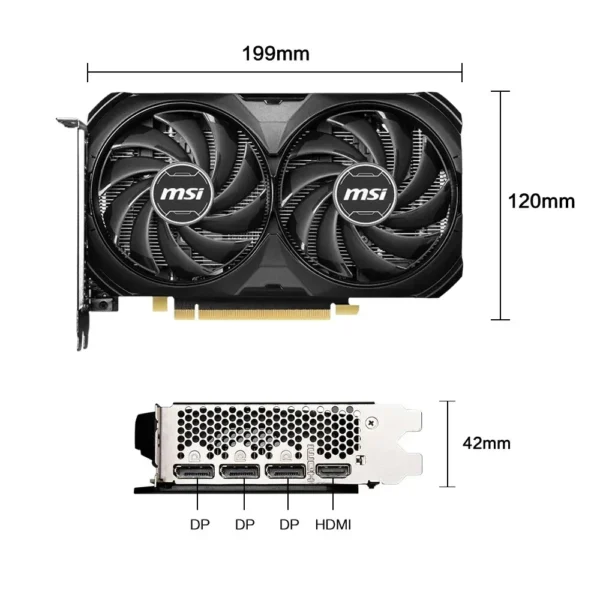

Card Dimension (mm): 199x120x42mm

Weight (Card / Package): 546G/783G

DirectX Version Support : 12 Ultimate

OpenGL Support Version: 4.6

Maximum Displays : 4

G-SYNC® technology : YES

Digital Maximum Resolution : 7680 x 4320



RTX 40 SERIES AND DLSS 3

New Streaming Multiprocessors — Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores — Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores — Up to 2x ray tracing performanceREVOLUTIONARY DUAL-FAN THERMAL — Two fans on a huge heatsink ensures a cool and quiet experience.

TORX FAN 4.0 — TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.ENDURANCE — EMPHASIZING ENDURANCE

-TORX FAN4.0 Zero Frozr

-Reinforcing Backplate

– Effective Thermal PaddingPCB— HARDENING VERY DETAILCUSTOM PCB

DrMos — DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Fuse — Additional fuses built into the custom PCB provide additional safeguards against electrical damage.SOFTWARE

Afterburner , MSI Overdlocking ScannerCONTRAST

Ray Tracing — Hyperrealistic. Hyperfast.

NVIDIA DLSS 3 — Max FPS. Max Quality. Powered by Al.PRODUCT SPECIFICATIONS

GeForce RTX™4060 Ti VENTUS 2X BLACK 8G OC

Graphics Processing Unit: NVIDIA®GeForce RTX™4060 Ti

Interface : PCI Express® Gen 4 x16 (uses x8)

Core Clocks : Extreme Performance : 2580 MHz (MSICenter) , Boost: 2565 MHz

CUDA®CORES : 4352 Units

Memory Speed : 18 Gbps

Memory : 8GB GDDR6

Memory Bus : 128-bit

Output : DisplayPort x 3 (v1.4a) , HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)

HDCP Support : YES

Power consumption : 160 W

Power connectors : 8-pin X 1

Recommended PSU : 550 W

Card Dimension (mm): 199x120x42mmPRODUCT SIZEPRODUCT DETAILSPRODUCT DISPLAYInstall the graphics card

1.Turn off the computer and unplug the power cord.

2.Remove the chassis cover and find the PCle slot.(A)

3. Removethe metal back plate at the expansion slot you want to insert the graphics card in.

4. Insert PCle connector (B)to PCle slot and make sure that it is firmly inserted

5. Fix the graphics card to the expansion slot with screw (C)

6. Co nectthe coresponding PCle power connector (D) to he independent power supply inter face (E) on graphics card Q&A

Q: Is the graphics card brand new

A: Yes, 100% brand new
